Drop Top Table with Bag

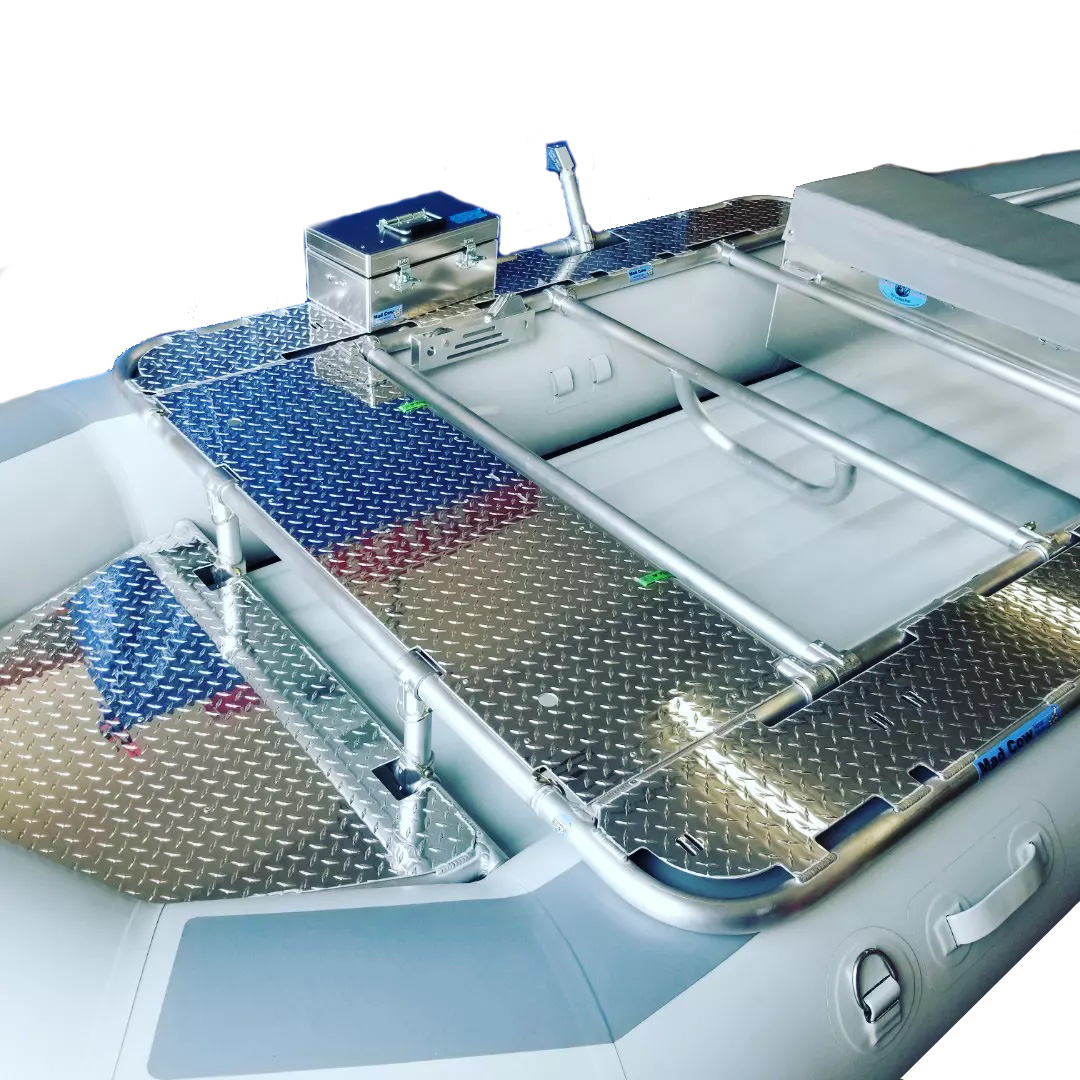

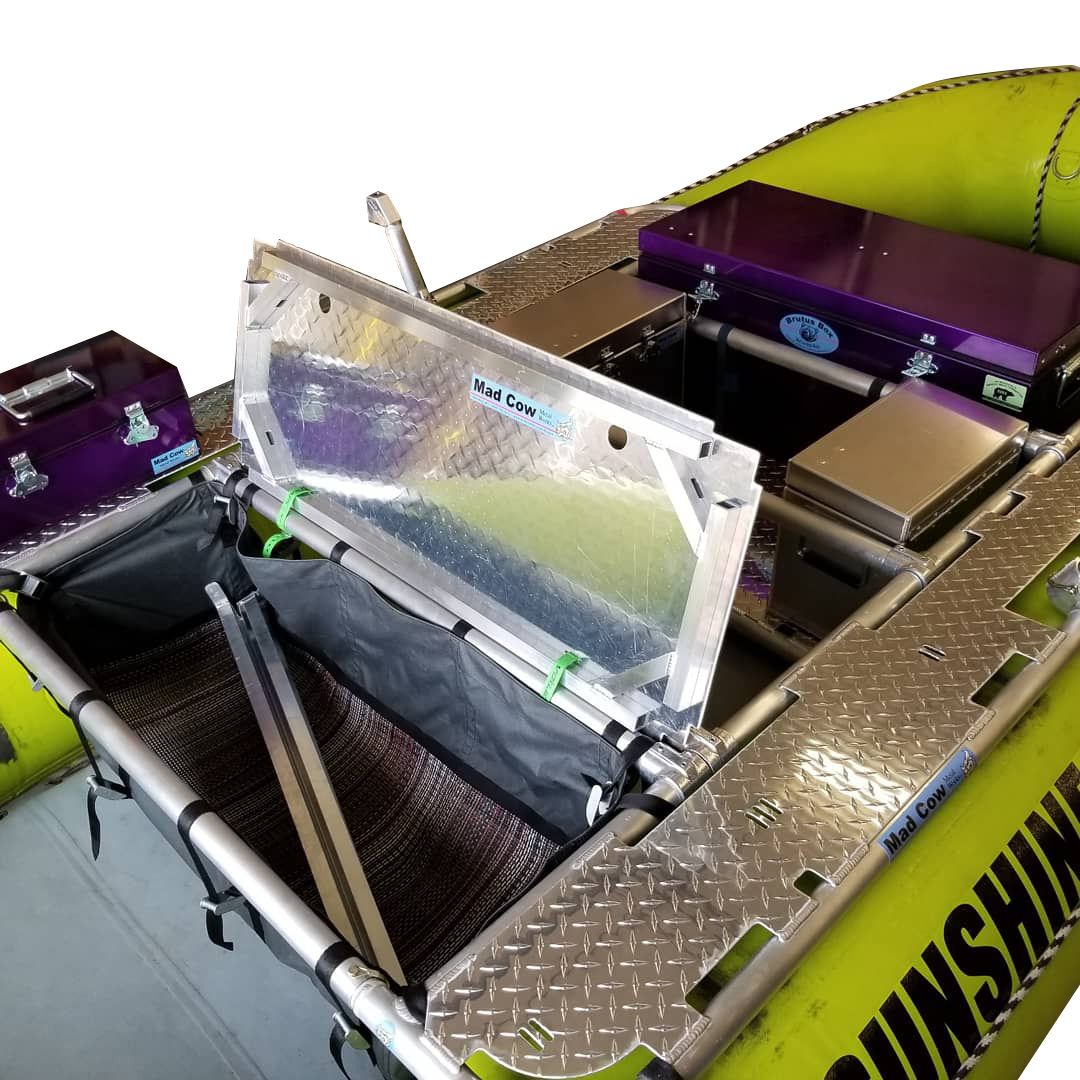

The Mad Cow Metal Works Drop Top Table is an addition to our Standard Raft Frame that is generally used in the front bay of your raft frame instead of a dry box. It works great for families or day cruisers. The Drop Top is uniquely set up for quick access to life jackets, kids toys, air pumps, propane bottles, sandals etc. Instead of the diamond plate top being welded to the second bar (as in our standard Drop Top), it is a removable table top for lunch breaks and camping.

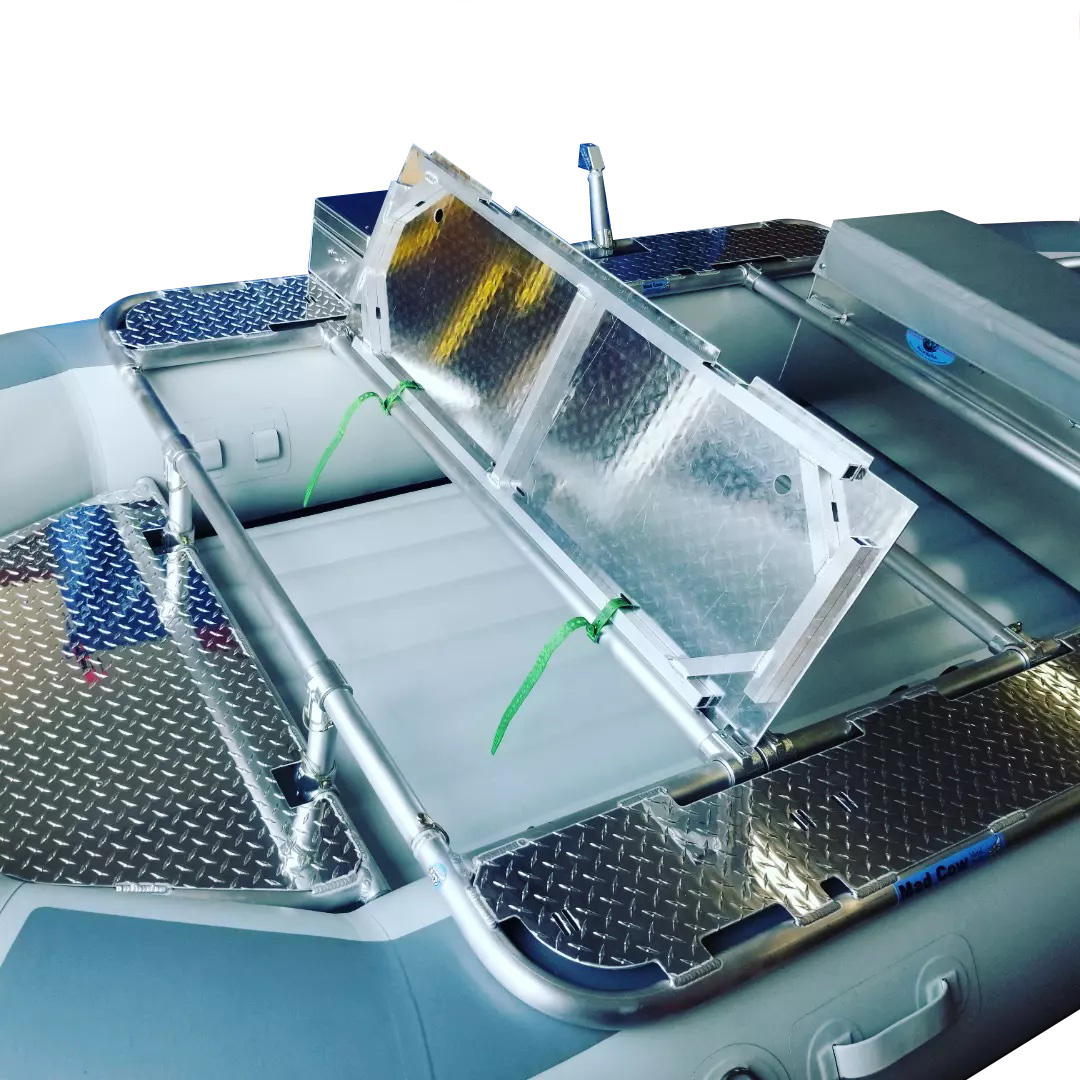

The Drop Top Table is custom made for your bay opening, making it a convenient way to have a table in a size that is non-intrusive to the rest of the boat. We machine in slots so you strap the table to the second bar in and works just like a regular drop top but you remove the straps and set up your table. It comes with two finger holes for lifting and framing on the bottom to hold it securely between your frame edges and tubes. Drop tops are made to fit our frames, may fit other frames.
The framing on the bottom is designed so all four legs, which store in your bag, slide into slots on the bottom and all four legs are spread at angles for stability, much more stable then vertical straight legs. We make the legs to your specs for the height or make the legs our standard kitchen box height, either 30 or 36”, most are built 36”.
For the Drop Top Table we usually use 1/8” Diamond plate as it matches the rest of the frame, but smooth aluminum is available also. We use 1-1/4” aluminum pipe for all of our work, nominal od is 1-5/8”
Our Drop Top bags are made with a product the industry calls “Superman Mesh” for the bottom and a vinyl/canvas blend for the sides and has 8-12 straps with cam buckles, super bomber construction.
