Drop Top Trailer Table with Bag
The Mad Cow Metal Works Trailer Table is an addition to our Standard Raft Frame that is designed to fit behind the main frame and give an extra full bay for longer trips. It is constructed out of aluminum pipe and diamond plate, with a hanging bag. Our 1/8” Diamond plate makes for very good traction and stability. We use 1-1/4” aluminum pipe for all of our work, nominal od is 1-5/8”

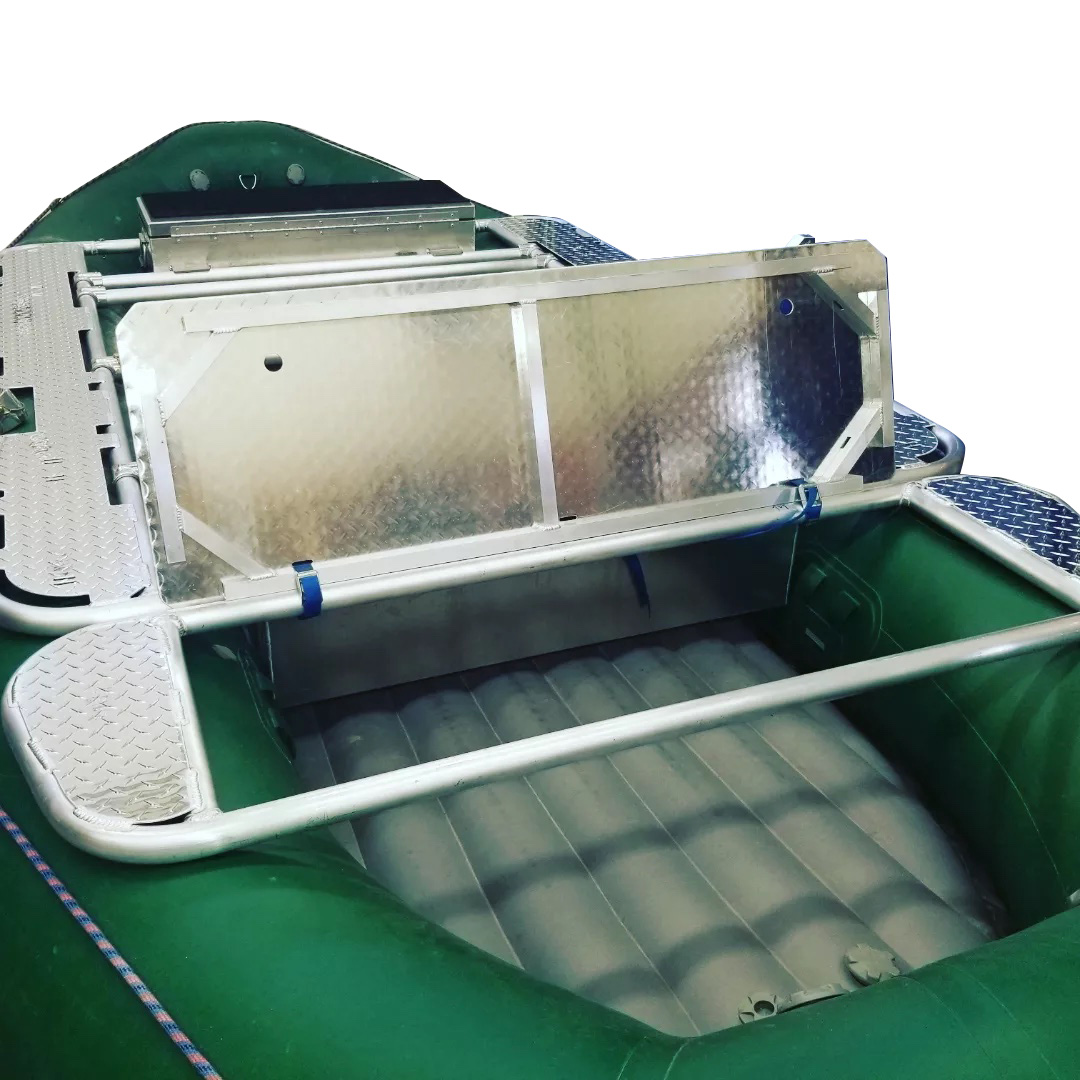

Our trailer comes as a Drop Top with a bag, this is the ideal spot to store items that can get wet and free up much needed space in your dry boxes. It is uniquely set up for quick access to life jackets, kids toys, air pumps, propane bottles, sandals, water jugs, dry bags, trash storage, etc.. Instead of the diamond plate top being welded to the bar (as in our standard Drop Top Trailer), it is a removeable table top for lunch breaks and camping.
The Drop Top Trailer Table is custom made for your bay opening, making it a convenient way to have a table in a size that is non-intrusive to the rest of the boat. We machine in slots so you strap the table to the second bar in and works just like a regular drop top but you remove the straps and set up your table. It comes with two finger holes for lifting and framing on the bottom to hold it securely between your frame edges and tubes.

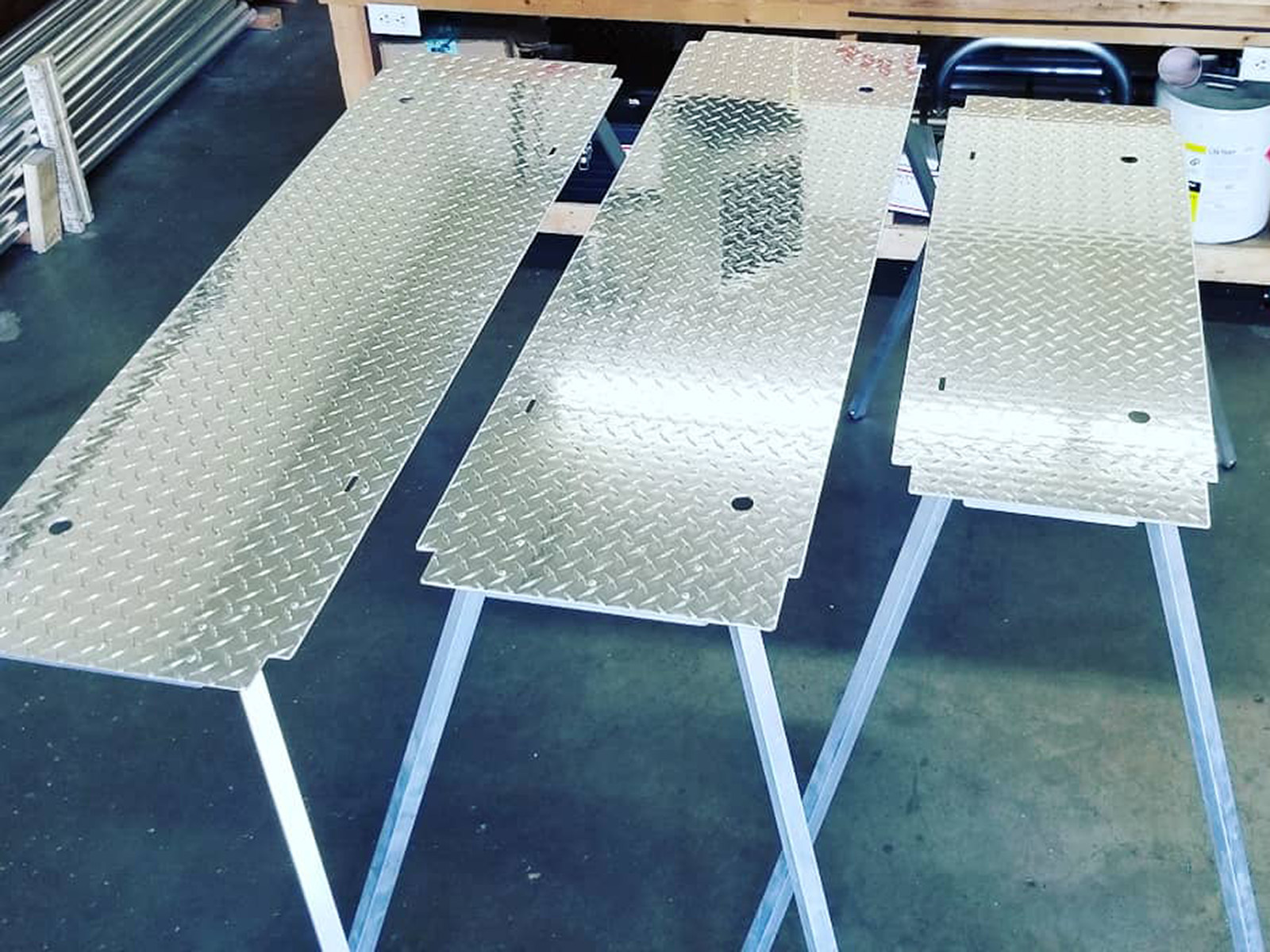

The framing on the bottom is designed so all four legs, which store in your bag, slide into slots on the bottom and all four legs are spread at angles for stability, much more stable then vertical straight legs. We make the legs to your specs for the height or make the legs our standard kitchen box height, either 30 or 36”, most are built 36”.
The rear bends of the trailer are bent to the general shape and angle of your tubes or your dimensions. The drop top trailer table should open front for strapping to the rear.
Trailer “front” straps to the back of the main frame and the trailer “rear” straps to your D rings.
Our Trailer bags are made with a product the industry calls “Superman Mesh” for the bottom and a vinyl/canvas blend for the sides and has 8-12 straps with cam buckles, super bomber construction.
