Raft Frame Anchor System with Rear Seat and Solid Rear Floor

You are here: Home / Raft Frames / Raft Frame Anchor System with Rear Seat and Solid Rear Floor
Raft fishing frame with seat and anchor system
Raft fishing frame anchor system
Solid rear floor for raft frame
Raft frame anchor pulley box
Raft frame seat base and anchor bars
Raft frame anchor bars
Raft frame seat, anchor system and solid rear floor
Raft frame anchor pulley box
Raft frame seat base and anchor bars
Raft frame seat, seat base and anchor bars
Raft frame anchor pulley box
Raft frame anchor bars
Raft frame anchor pulley box
Raft frame seat, anchor system and solid rear floor

$2,250.00

Raft Frame Anchor System with Rear Swivel Seat and Solid Rear Floor (frame sold separately)

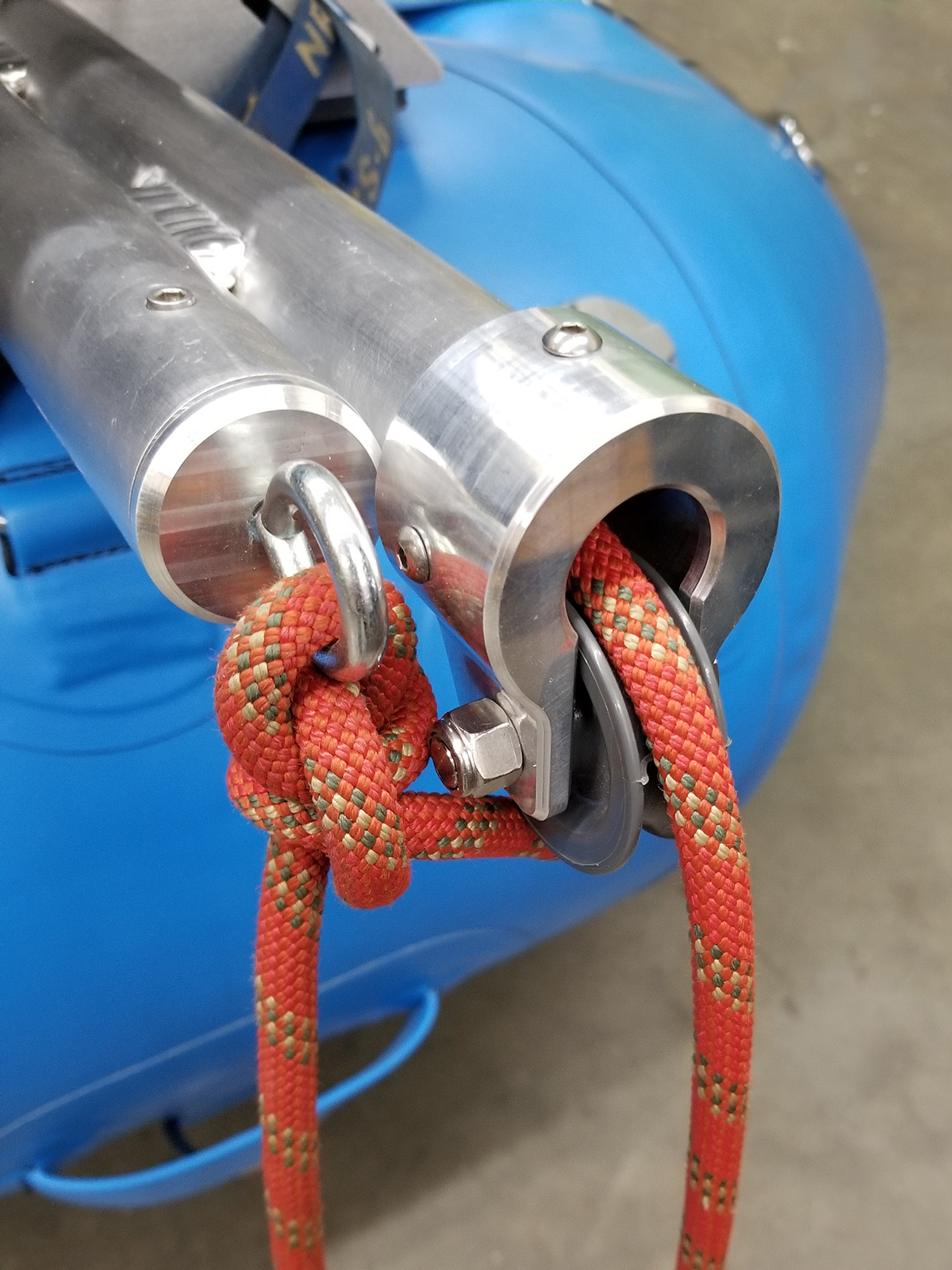

Our raft frame anchor system is designed to minimize risk of entanglement and entrapment.  The anchor line is fed under the frame and thru the pipe framing in the rear which keeps the anchor rope out of the way – keeping dogs, children, family and friends safe from getting tangled in the rope.  And for folks that fish, one less thing to snag your hook on!

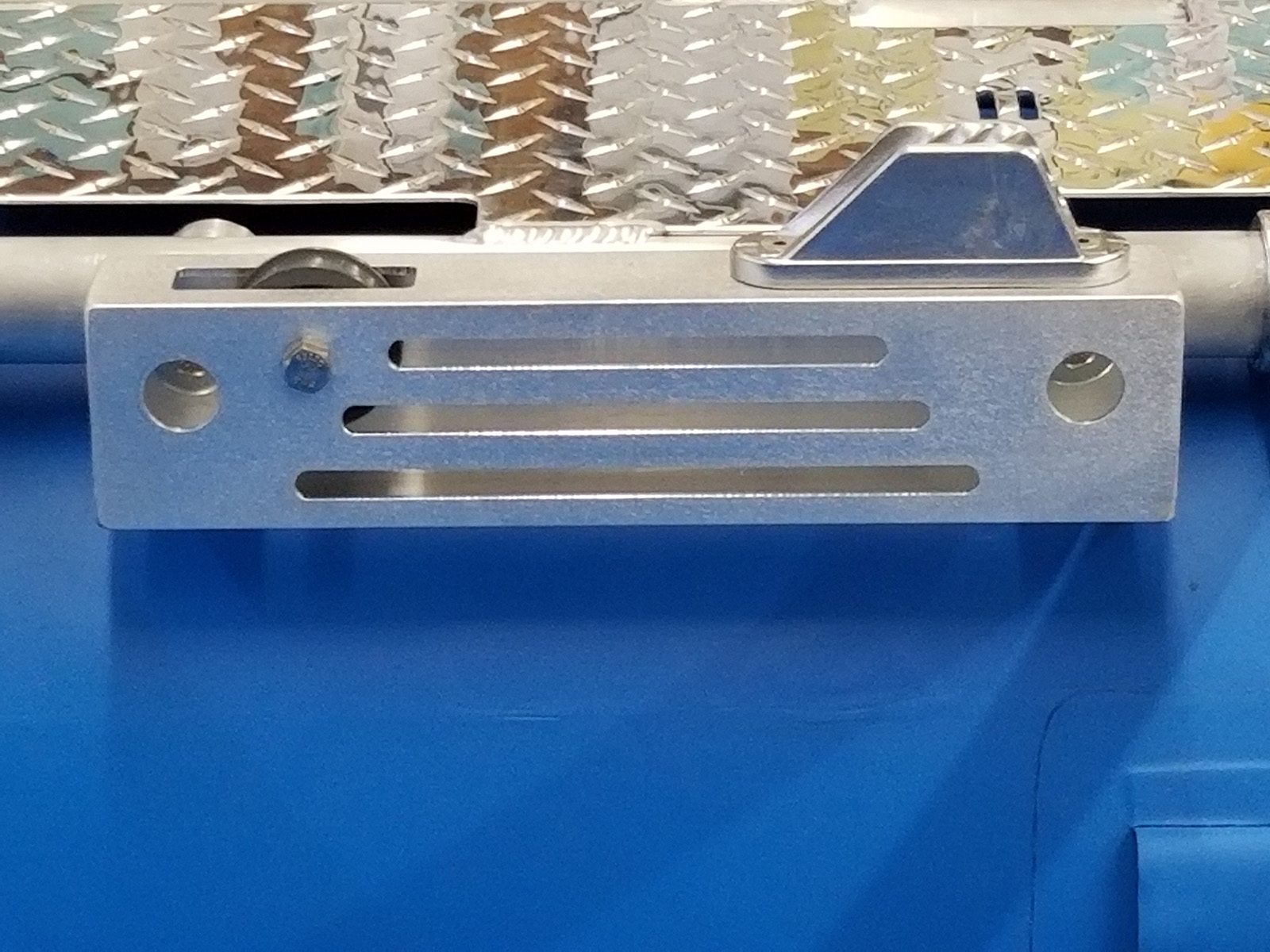

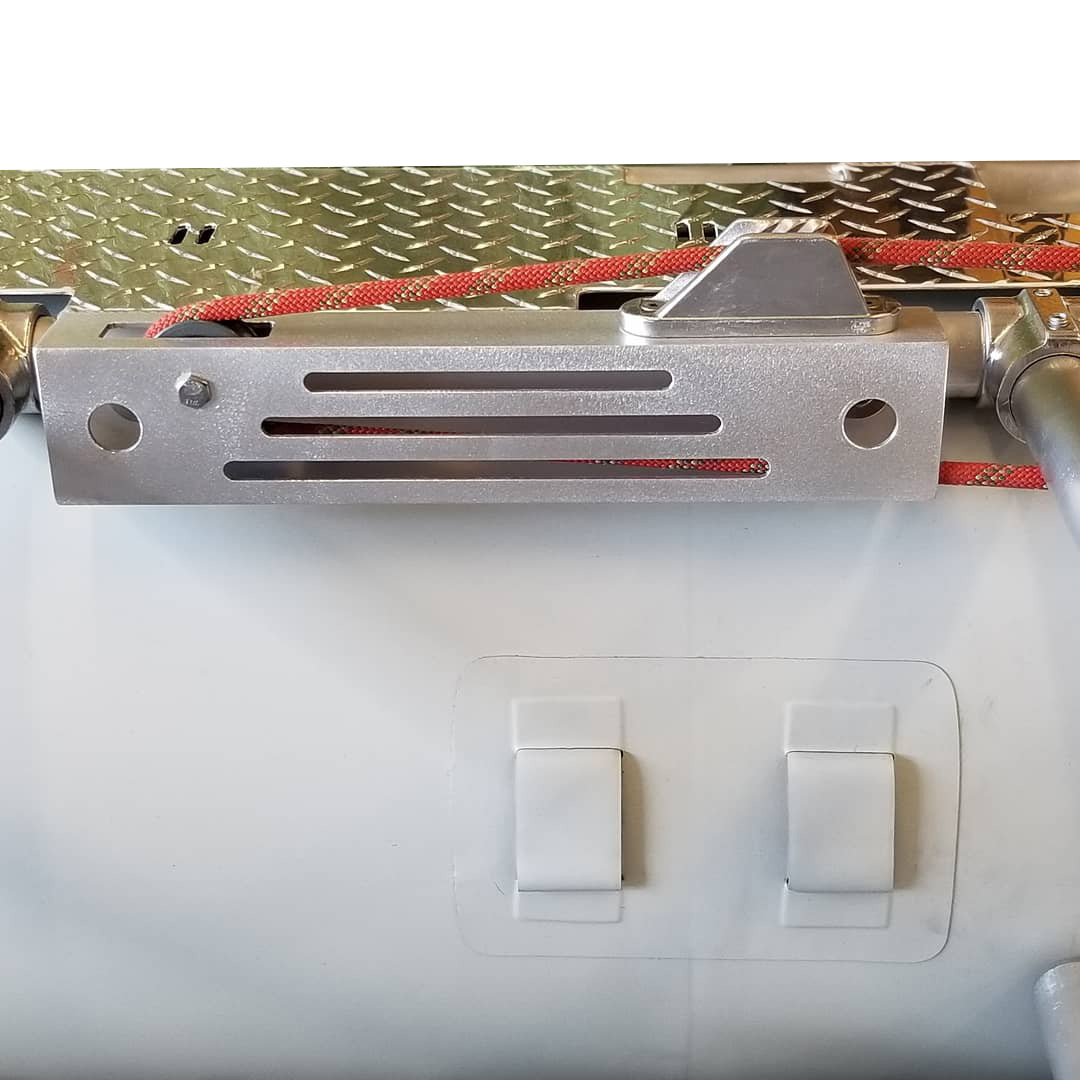

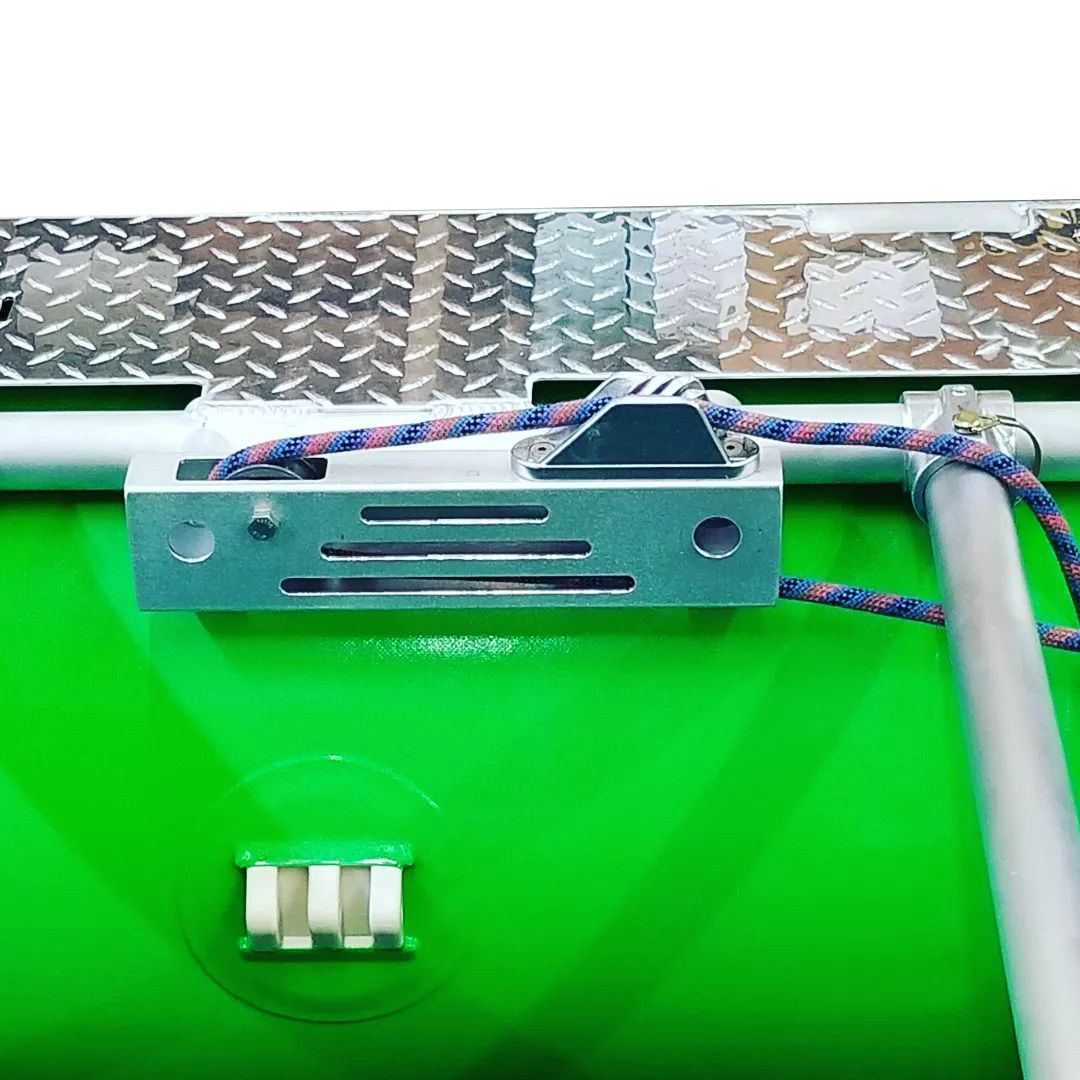

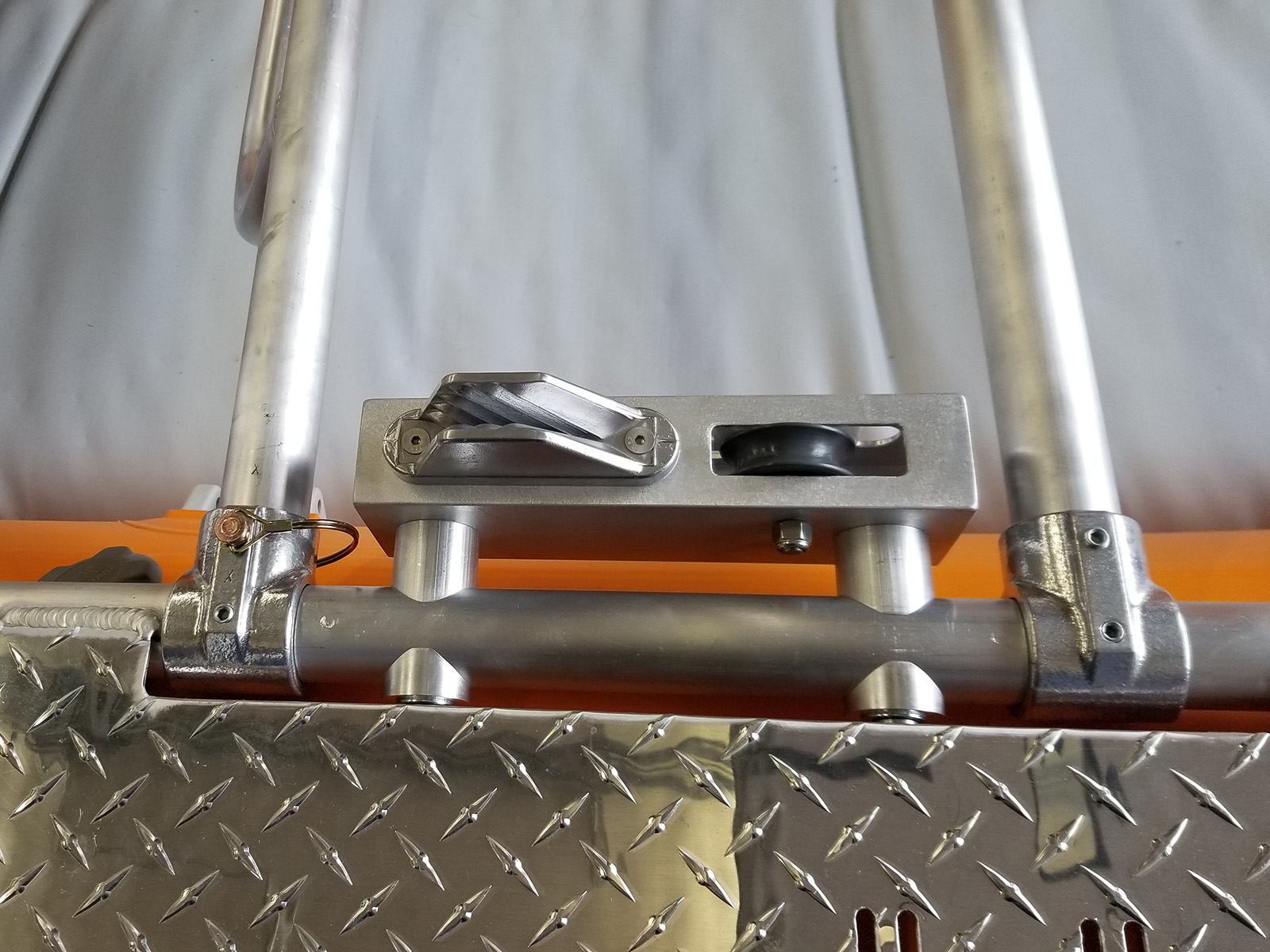

Our aluminum pulley box is machined for each individual boat’s measurements, one size does not fit all. The size is mainly determined by the second bay width where the cooler generally goes. It may also be able to be put in the captain’s bay (depending on if there are captain’s boxes in that bay or not), however offers better pulling leverage in the second bay.

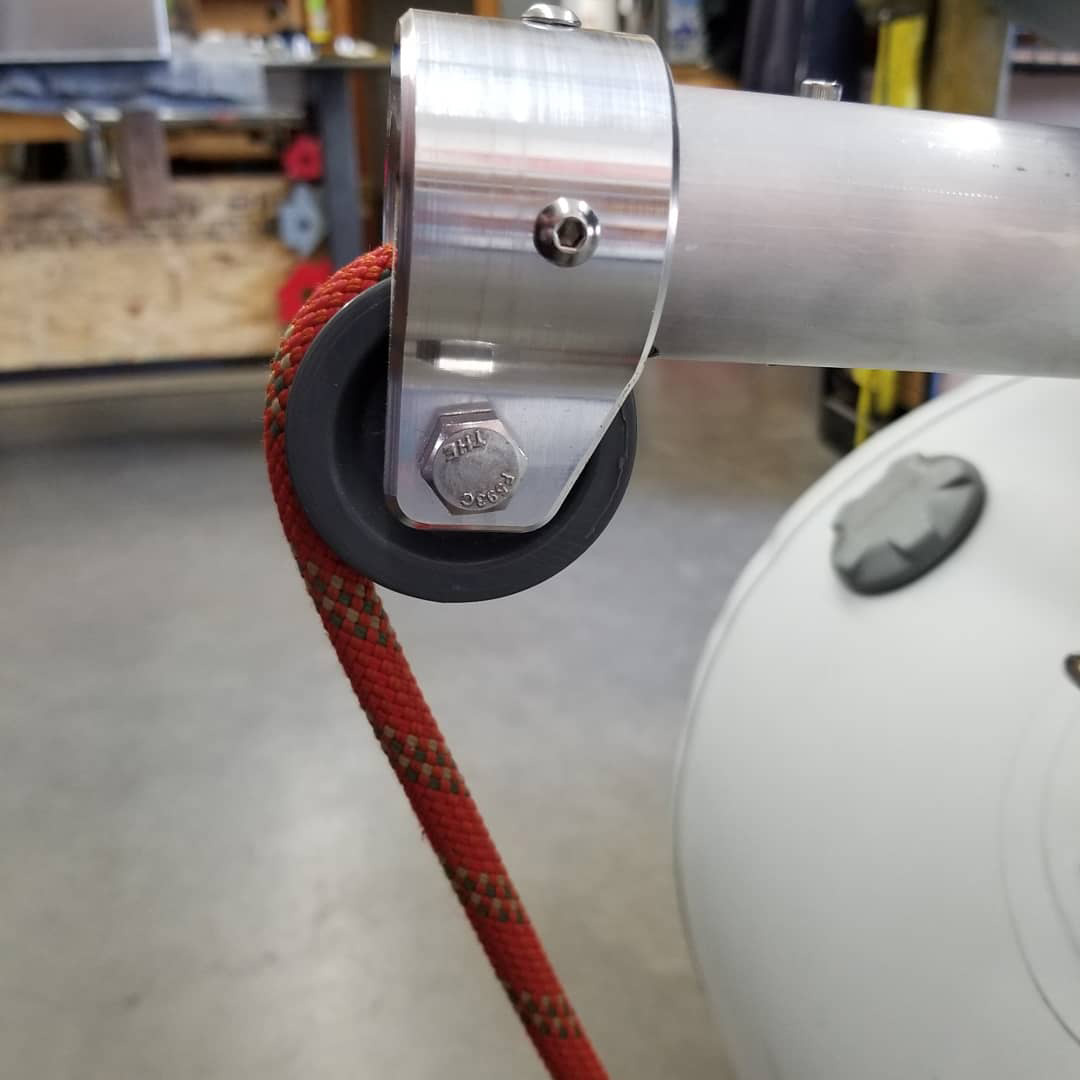

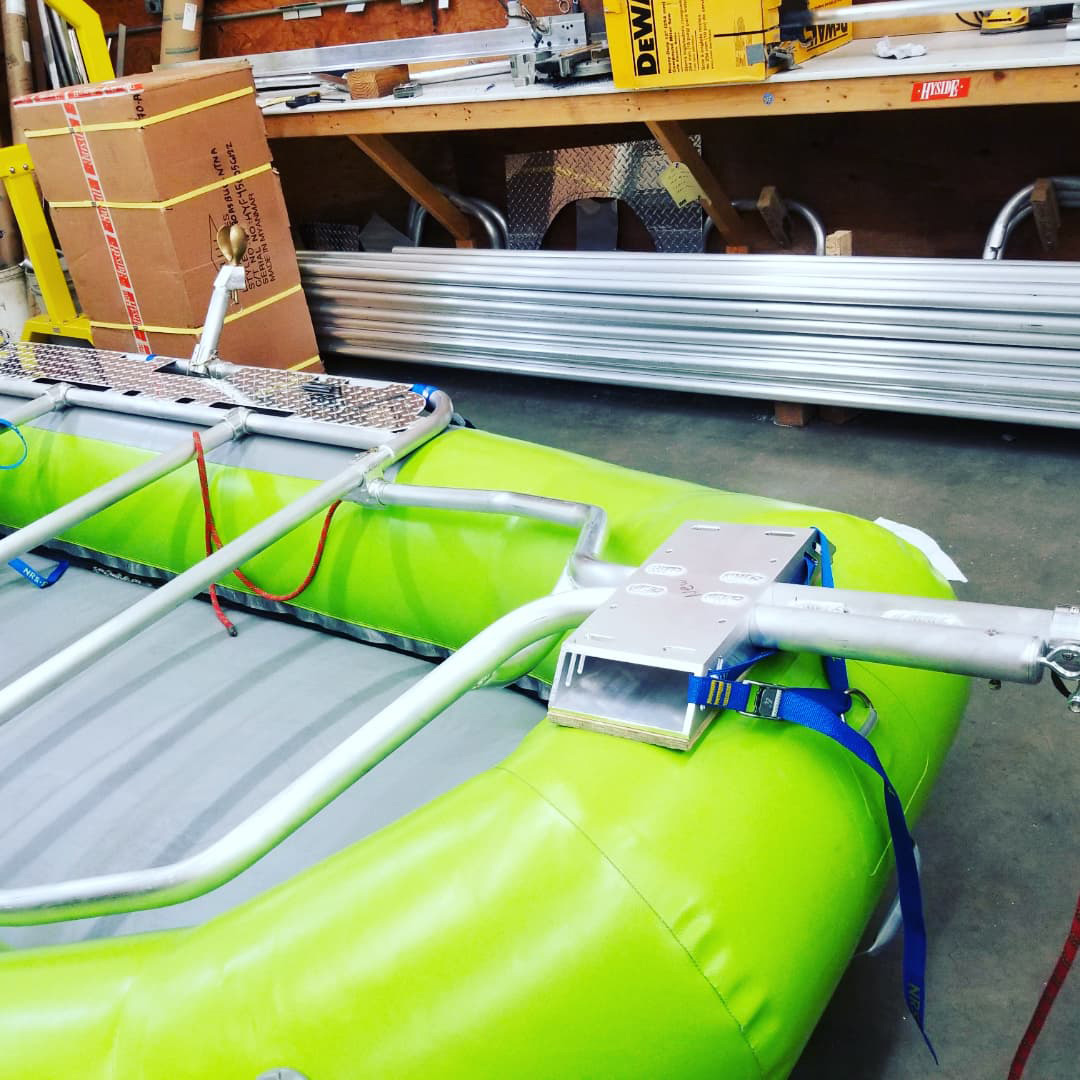

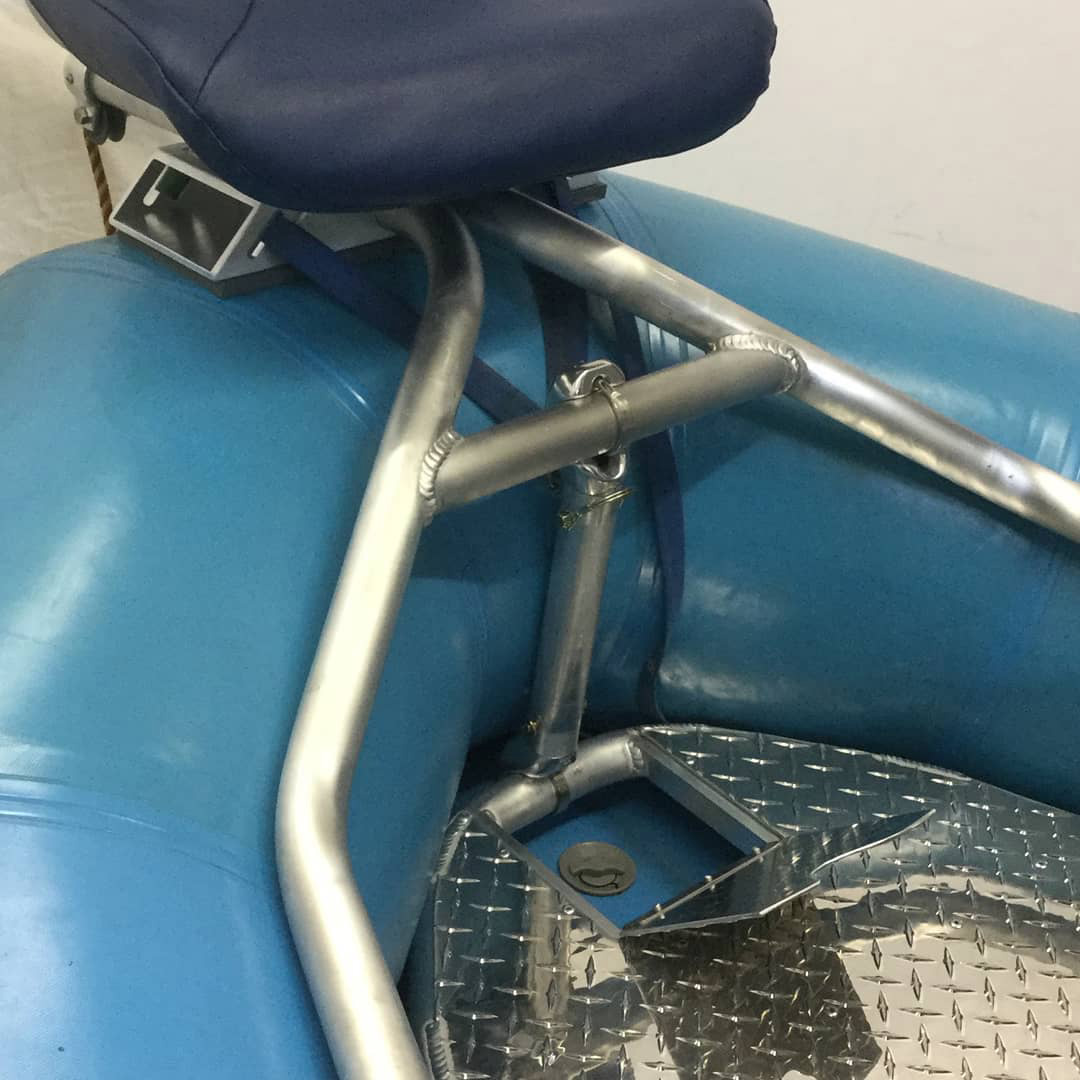

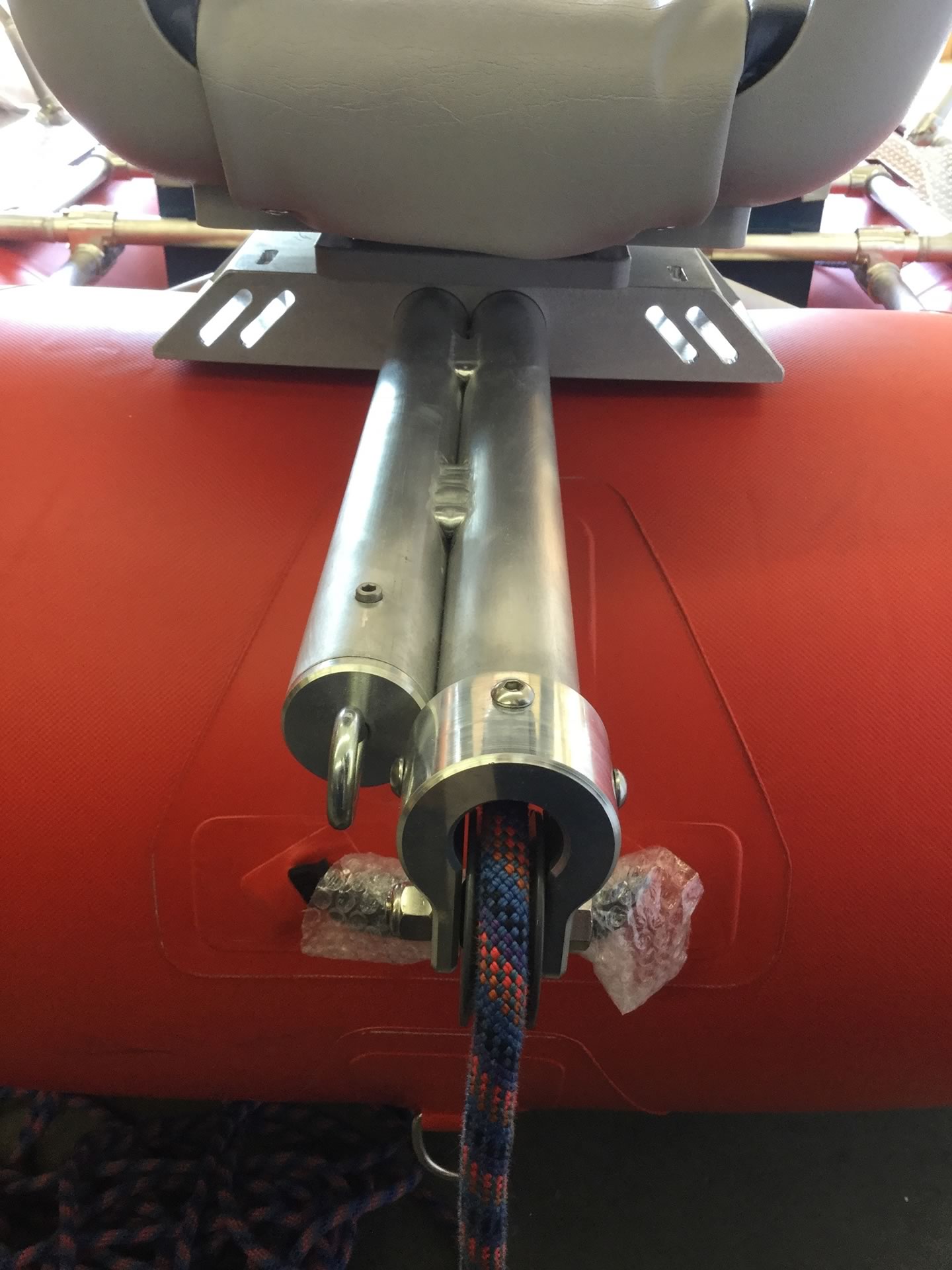

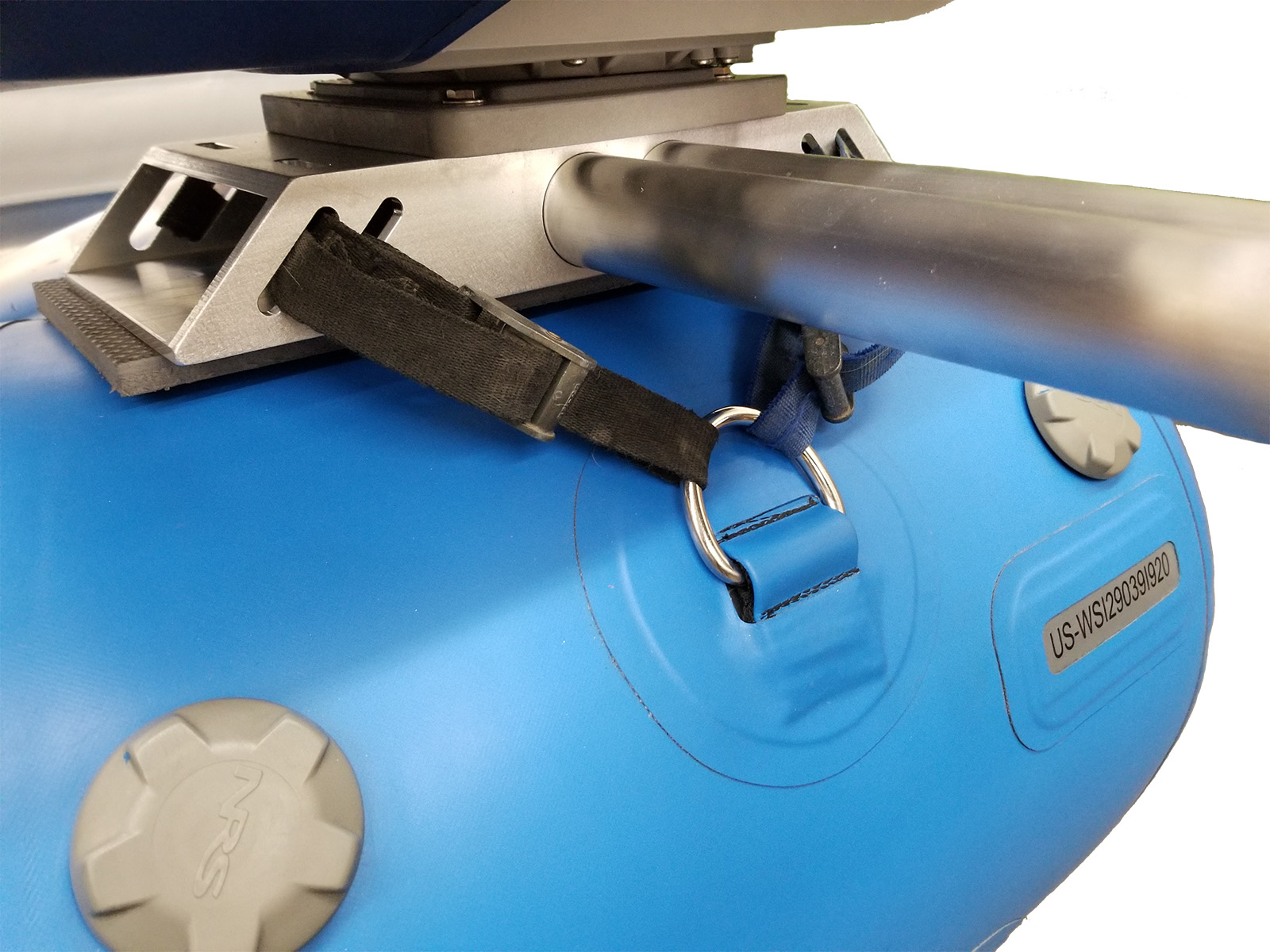

The back of the boat (stern) needs to have in and out “D” rings to attach our custom-designed seat base (machined in our shop). The seat base and anchor bars are held to the frame with these D rings, the front of the anchor bars go through frame sliders which are attached to the rear of the frame but the sliders/anchor bars are allowed to pivot up and down as you go through white water or bump into rocks so the anchor system is free to articulate on its own as needed without you feeling the results of these bumps in the frame. We use 1-1/4” aluminum pipe for all of our work, nominal od is 1-5/8”.

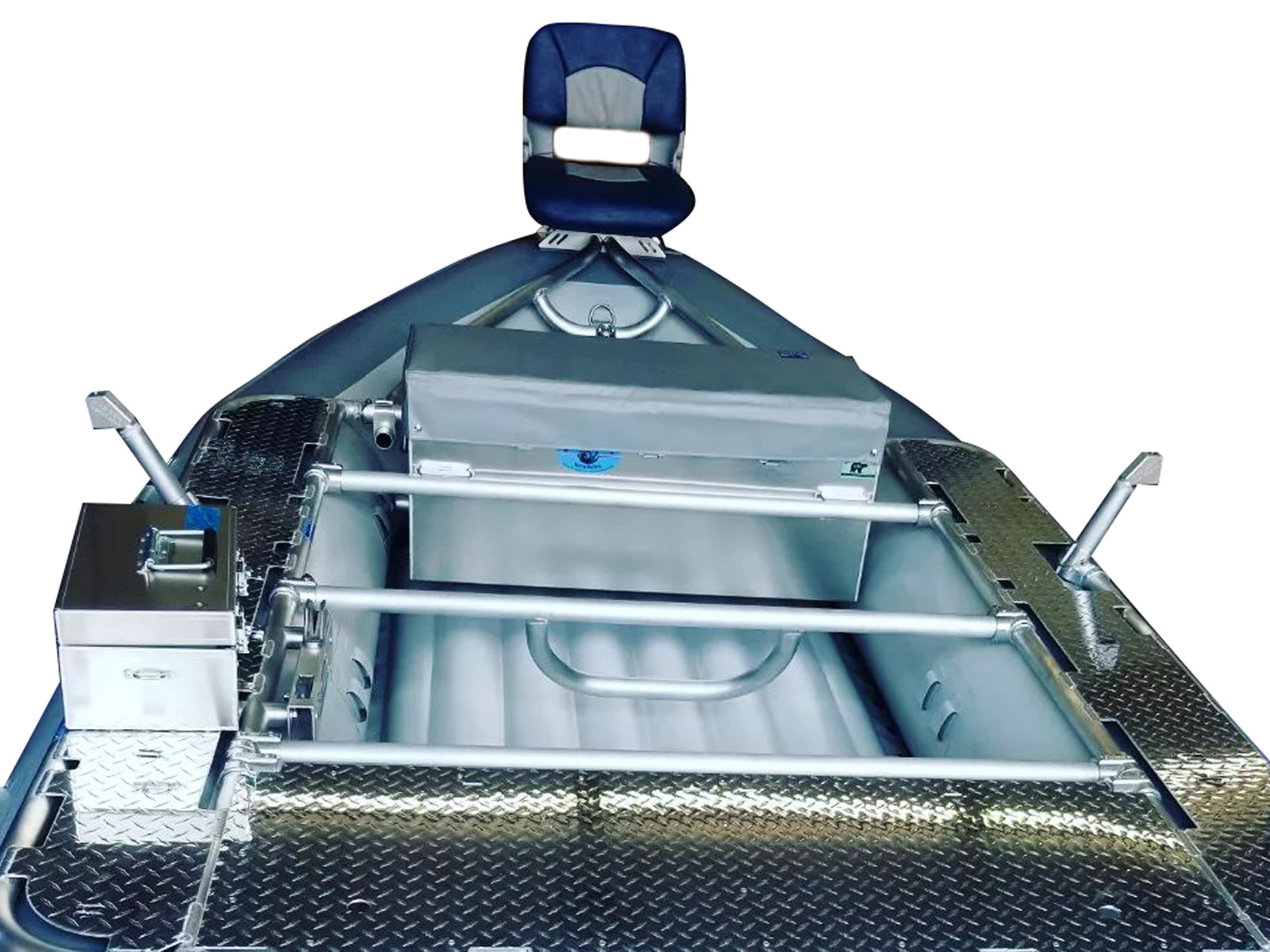

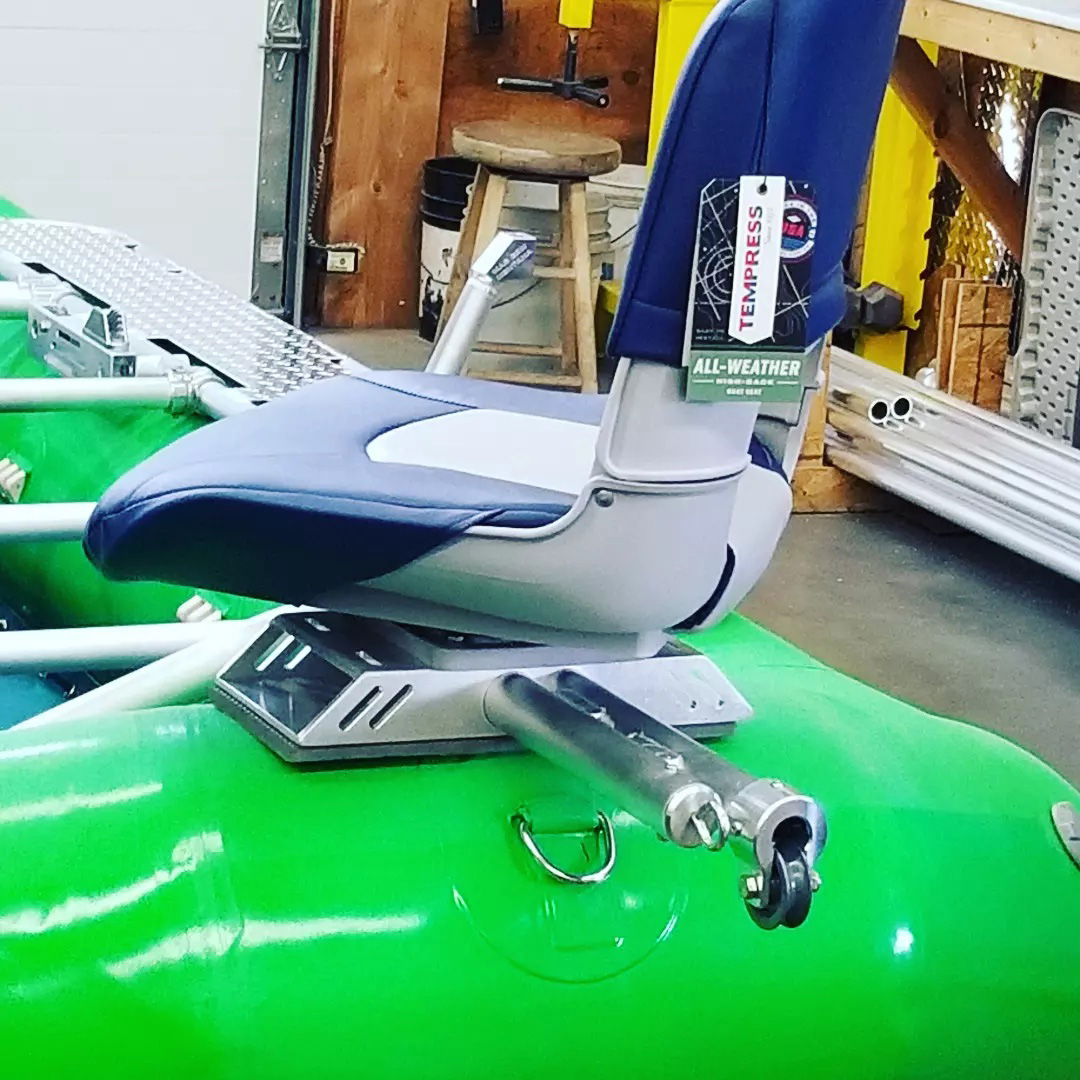

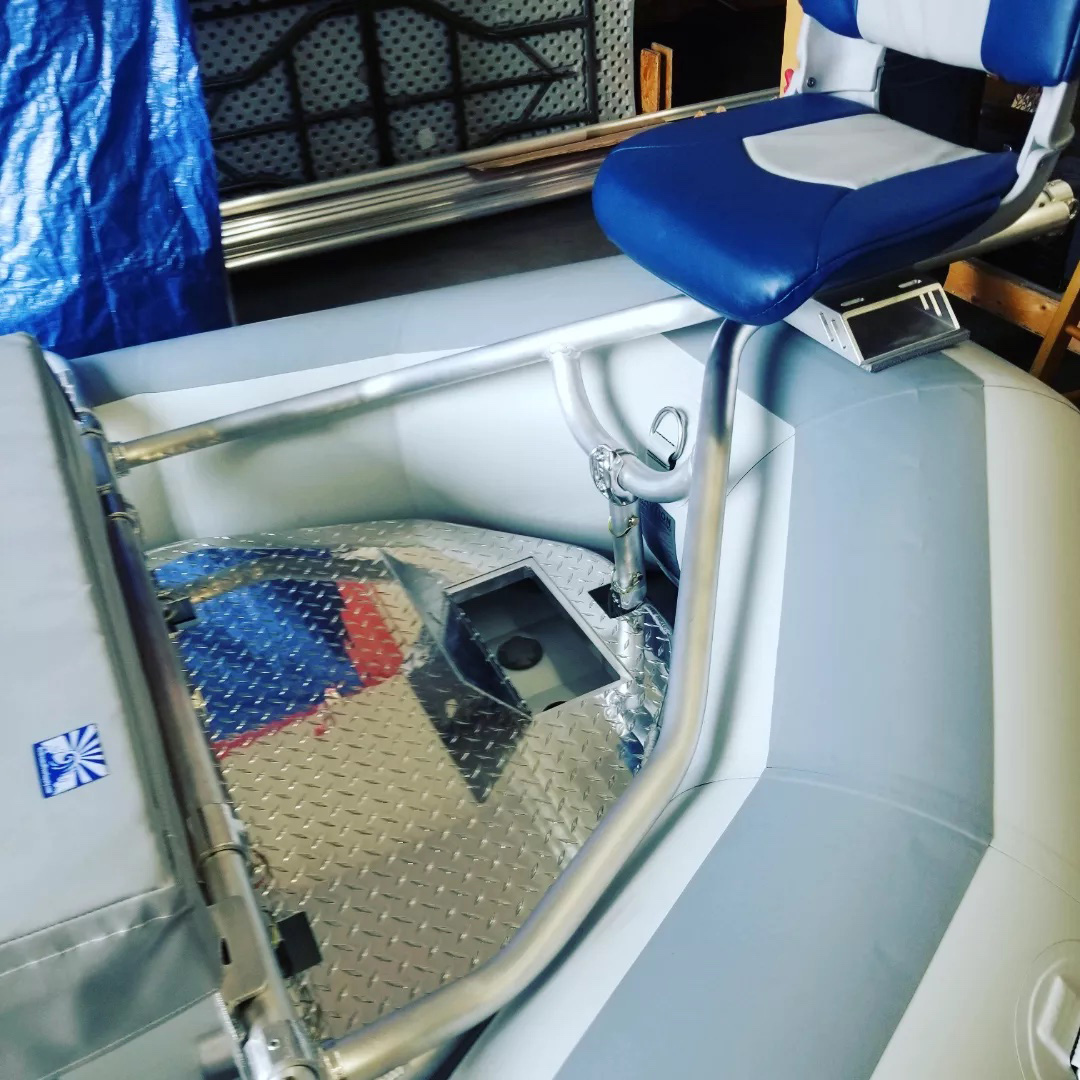

Our anchor systems with rear solid floor are priced including rear swivel “quick disconnect” seat base, “Tempress All-Weather High Back seat” and a solid rear floor with valve cutouts. The raft frame is sold separately. We stock the Blue/Gray seat, other colors may be available to order.

We do need to have your raft in the shop in order to manufacturer the anchor system for you (we bend the aluminum pipe to follow the curves of your raft). Our anchor system may work with other manufactures frames.

Looking for raft frames or raft frame components?

Call for orders/inquiries. (406) 581-9115.
